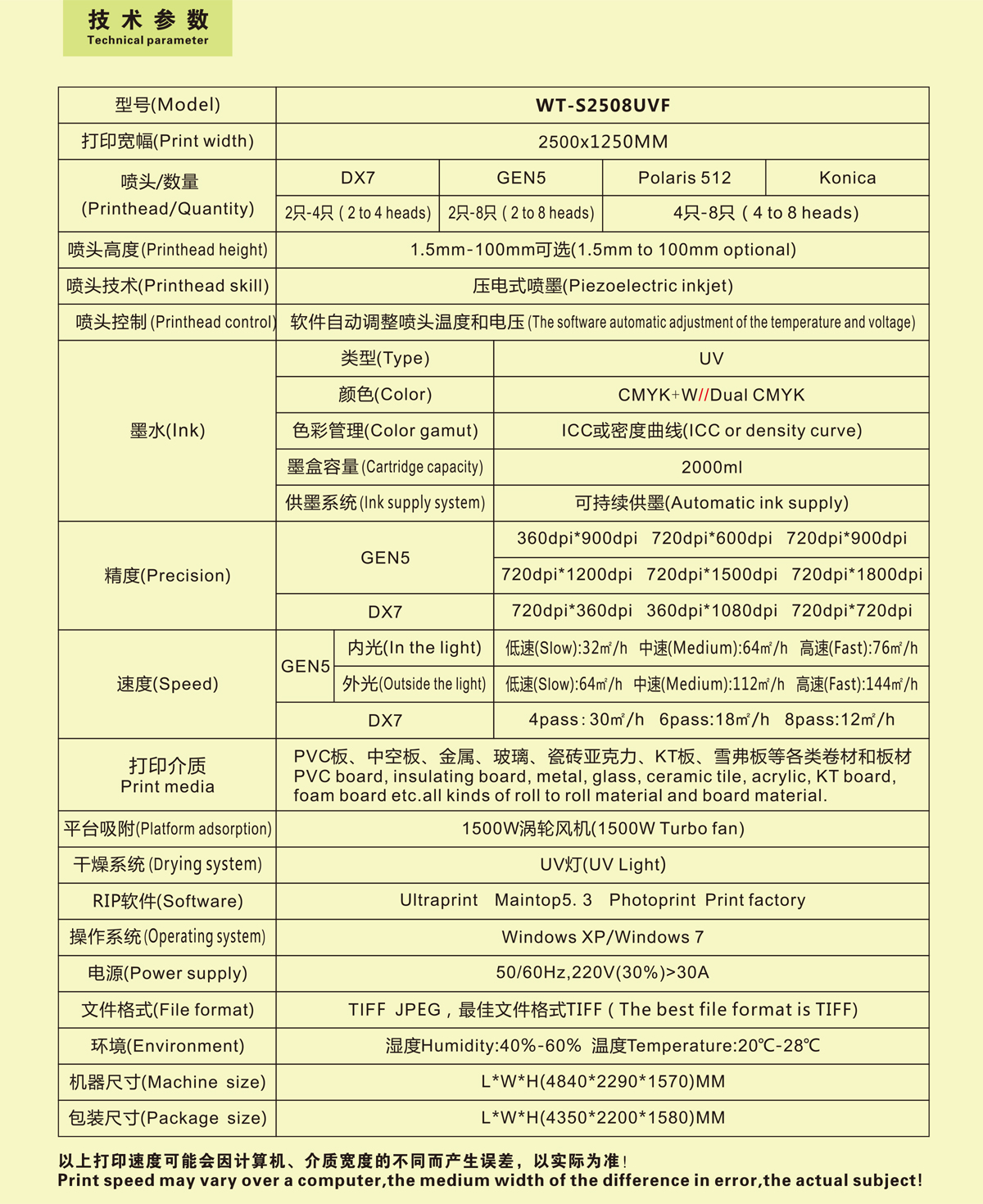

  • Technical parameter

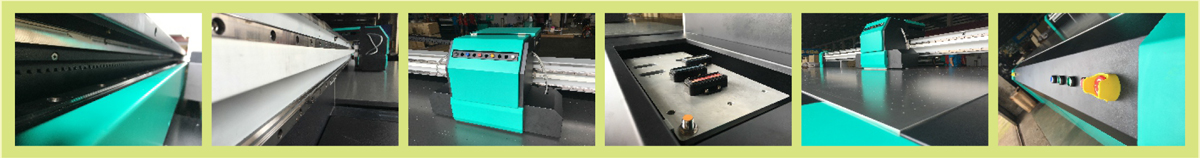

Detail about machine


WUTE upgrade industrial-grade UV flatbed printer, Its movement system of X axis adopts Japanese Fuji server, Hiwin linear guide, the double guide rails and four pieces of mute slide block structure. Similarly, the movement system of Y axis adopts Hiwin linear guide, and It is matchable for the finishing material, which make teh carriage movement mor stable, and the resolution of printing picture higher. The use of high precision electric negative pressure system, reduce the compressed air usage more than 90%, which improves the service life of air compressor effectively. LED water-cooling system can make the wick more durable.

Ricoh GEN5

Ricoh G5 head:1280 nozzles and ignition frequency:60 KHZ, grayscale piezoelectric nozzle, variable ink drop printing, the minimum is 7 pl, and the maximum is 35 pl, it is applicable for UV ink, water-based, solvent, eco solvent etc. all kinds of inkfink. With constant temperature and electrical insulation system. it is not easy to be influenced by the work environment and the viscosity of ink temperature. It is made from the separate small plate, connecting line, and the core nozzle, whole steel structure, extra strong corrosion resistance, which can be continuously long time inkjet, and it is not easily inclined gush. Its average service life is about from 3 to 5 years, beyond 2 times of the similar printhead.
