UV Printer
UV Roll to Roll Printer

UV Roll to Roll Printer

WT-DS3208

  • Product introduction

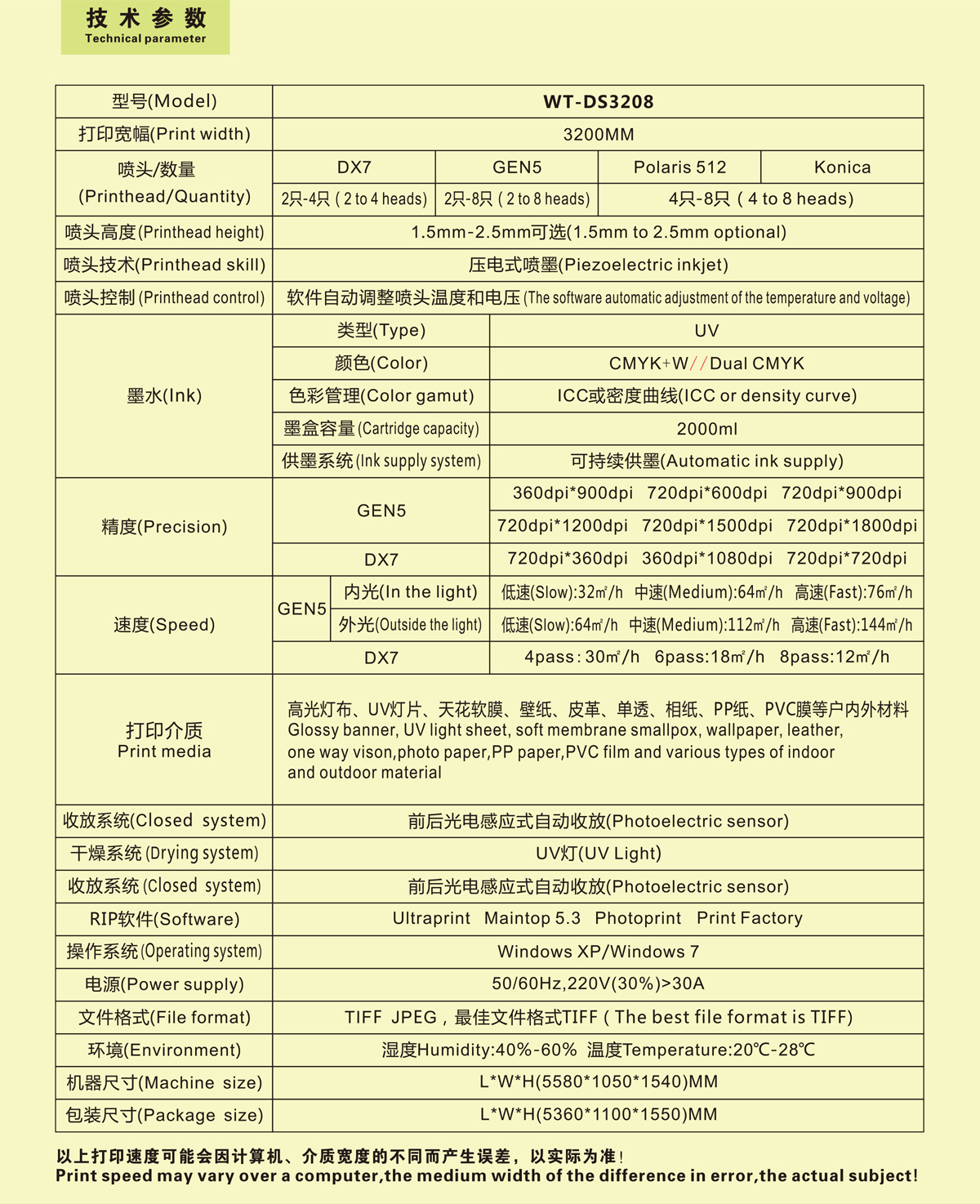

  • Technical parameter

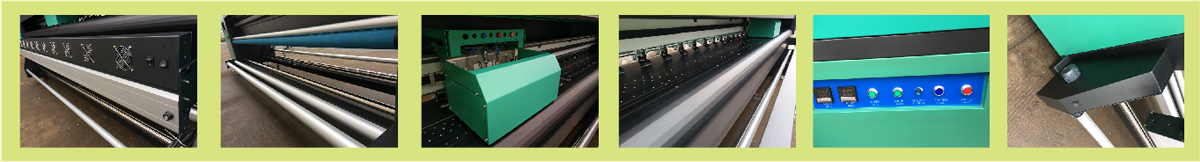

Detail about machine


WUTE latest UV roll to roll printer, its feeding material system adopts 12cm and 8cm rubber rollers in the front and back seperately, which makes material fit widely and combine with feeding & take-up system perfectly. It can realize material not arched or deflective. The movement system of carriage adopts Hiwin linear guides. The structure of four pieces of mute slide blocks, match for the finishing material, which makes the carriage movement more stable, and the resolution of printing picture higher. The use of high precision electric negative pressure system, reduce the compressed air usage more than 90%, which improves the service life of air compressor effectively. LED water-cooling system can make the wick more durable.

Ricoh GEN5

Ricoh G5 head:1280 nozzles and ignition frequency:60 KHZ, grayscale piezoelectric nozzle, variable ink drop printing, the minimum is 7 pl, and the maximum is 35 pl, it is applicable for UV ink, water-based, solvent, eco solvent etc. all kinds of inkfink. With constant temperature and electrical insulation system. it is not easy to be influenced by the work environment and the viscosity of ink temperature. It is made from the separate small plate, connecting line, and the core nozzle, whole steel structure, extra strong corrosion resistance, which can be continuously long time inkjet, and it is not easily inclined gush. Its average service life is about from 3 to 5 years, beyond 2 times of the similar printhead.
